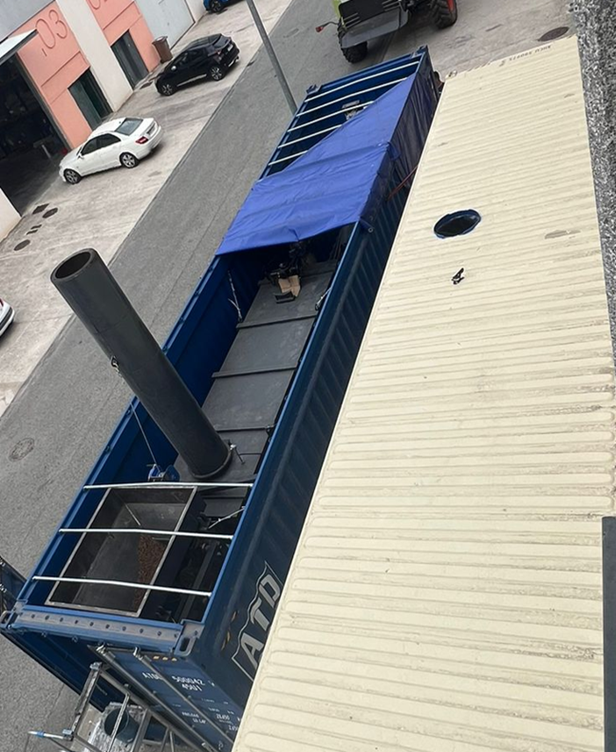

Transportable pilot unit for in-situ biochar production by controlled thermochemical treatment of biomass under oxygen-limited conditions. Nominal load volume: 1,000 L. Production rate: below 90 kg/h, depending on biomass. Operating temperature: below 800 °C. Operating pressure: approximately 0.99 bar. Typical operating time: 0.5-1 h. Recommended particle size: below 5 cm and inlet moisture below 15%. Its portable configuration enables on-site trials, reducing the need to transport bulky biomass and allowing process validation with locally available feedstocks.

Location: Aloa Industrial Estate, Street A, No. 32, Unit 4, 31100 Puente la Reina, Navarra, Spain
Associated technology services: On-site biomass valorization; portable pyrolysis and biochar production; pilot demonstrations; custom biochar development; feedstock testing; process optimization; production of demonstrator batches; validation at the waste-generation site.
Application sector: Agriculture; forestry; agro-food industries; decentralized biomass and residue valorization; circular bioeconomy; biochar; carbon removal and soil applications; environmental technologies.
