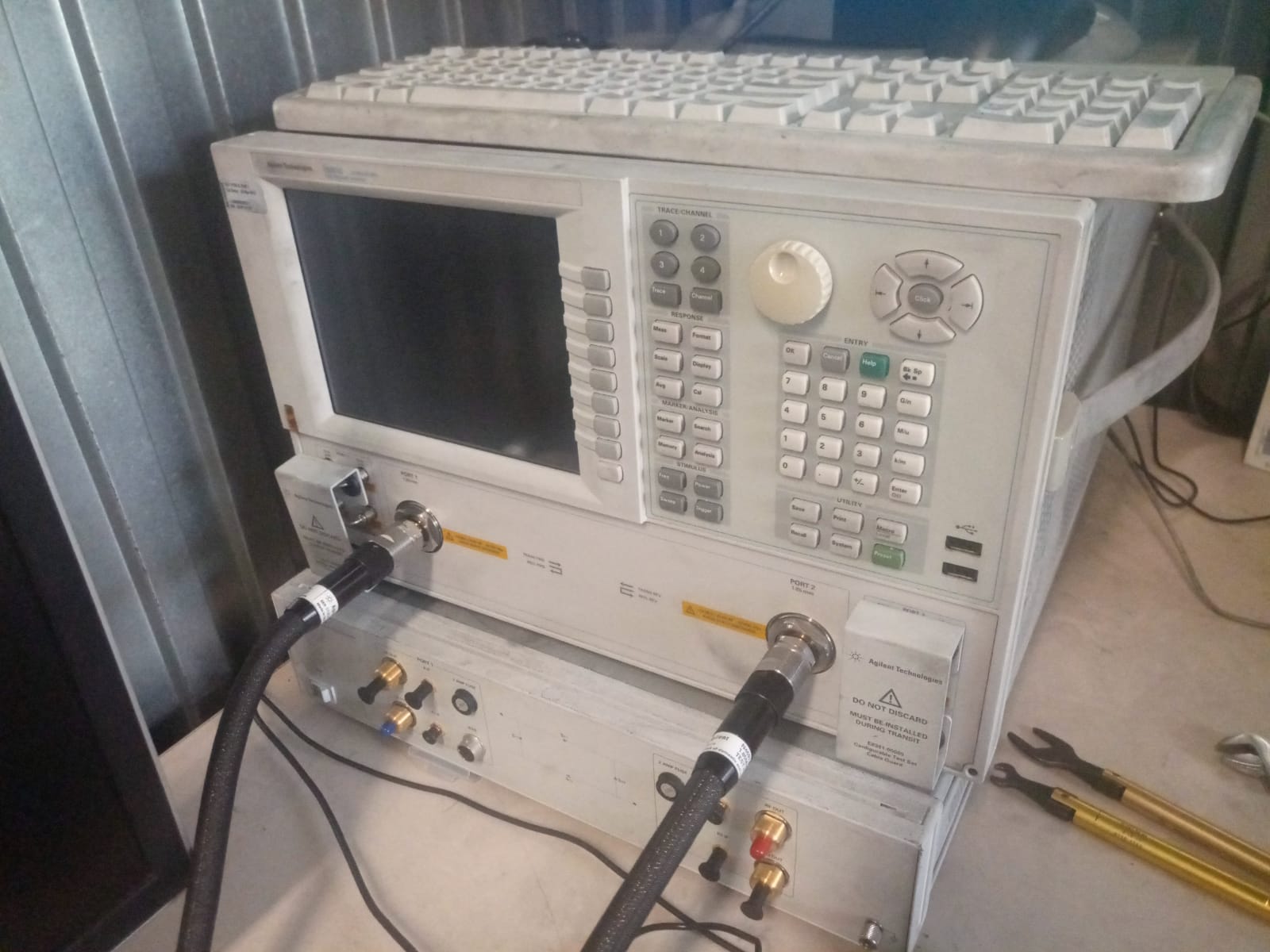

2 PORTS VECTOR NETWORK ANALYSER FROM 10 MHZ TO 67 GHZ (WITH MMW EXTENSIONS UPTO 500 GHZ)

Research institute: UPNA-Institute of Smart Cities
Manufacturer: Agilent Technologies
Model: E8361C PNA
Location: UCTAI: Area Electronica. Lab. "Luis Mercader" de antenas y microondas, Cámara Anecoica de Medida de Antenas. Edificio de los Tejos. Campus Arrosadia. UPNA. Pamplona.
Associated technology services: The primary function is to characterize the behavior of high-frequency electromagnetic signals as they pass through or are reflected by a device. The instrument generates an RF/microwave signal, applies it to the element under study, and measures the signal that: is reflected; passes through the device. From these measurements, it obtains the so-called S-parameters. The E8361C is specifically designed for S-parameter measurements and can perform measurements on antennas, waveguides, electronic devices, and more.
Application sector: Industry and research in: Antenna design and characterization, Microwave and millimeter wave antennas, Radar, RCS (Radar Cross Section) measurement, microwave absorbing materials, metamaterials, electromagnetic structures, filters and resonators, waveguides, RF cables and connectors, amplifiers, mixers, high frequency devices, characterization of electronic components.
